DJ61F-40P低温长轴截止阀（SW）
产品规范 |  |
主要零部件材料 |

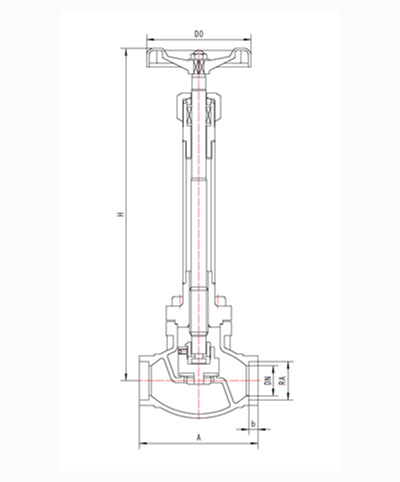

外型尺寸与连接尺寸
产品型号 | DJ61F-40P低温长轴截止阀 | 重量 (kg) | ||||||
产品代号 | 通径 DN(mm) | 尺寸(mm) | ||||||
A | H1 | H2 | b | RA | D0 | |||
433J10AB2A3 | 10 | 70 | 253 | 247 | 8 | 14.5 | 75 | 1.4 |
433J15AB2A3 | 15 | 80 | 268 | 260 | 8 | 18.5 | 75 | 1.6 |
433J20AB2A3 | 20 | 90 | 307 | 297 | 8 | 25.5 | 100 | 2.2 |
433J25AB2A3 | 25 | 100 | 323 | 310 | 8 | 32.5 | 100 | 2.4 |
433J32AB2A3 | 32 | 110 | 362 | 346 | 10 | 38.5 | 120 | 4.6 |
433J40AB2A3 | 40 | 120 | 380 | 360 | 10 | 45.5 | 120 | 4.8 |
433J50AB2A3 | 50 | 150 | 445 | 420 | 15 | 57.5 | 160 | 9.9 |
