产品规范 |  |
主要零部件材料 |

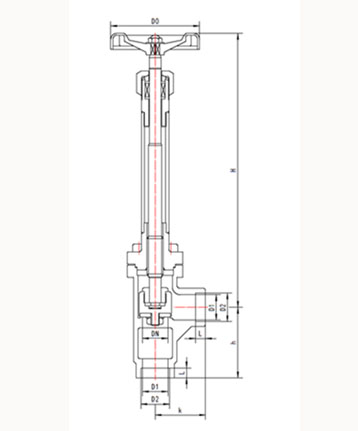

外型尺寸与连接尺寸
产品型号 | DJ64F-40P低温角式截止阀 | 重量 (kg) | ||||||||
产品代号 | 通径 DN(mm) | 尺 寸(mm) | ||||||||
k | h | H1 | H2 | L | D1 | D2 | D0 | |||
433K10AB2A3 | 10 | 35 | 20 | 268 | 260 | 8 | 10 | 14.5 | 65 | 1.4 |
433K15AB2A3 | 15 | 40 | 25 | 268 | 260 | 8 | 15 | 18.5 | 65 | 1.6 |
433K20AB2A3 | 20 | 45 | 30 | 332 | 320 | 8 | 20 | 25.5 | 100 | 2.3 |
433K25AB2A3 | 25 | 50 | 35 | 332 | 320 | 8 | 25 | 32.5 | 100 | 2.5 |
433K32AB2A3 | 32 | 55 | 40 | 400 | 380 | 10 | 32 | 38.5 | 120 | 4.9 |
433K40AB2A3 | 40 | 60 | 50 | 400 | 380 | 10 | 40 | 48.5 | 120 | 5.1 |
433K50AB2A3 | 50 | 80 | 60 | 493 | 470 | 10 | 50 | 57.5 | 160 | 10.4 |
433K65AB2A3 | 65 | 90 | 70 | 493 | 470 | 10 | 65 | 76.5 | 160 | 13.5 |
433K80AB2A3 | 80 | 100 | 80 | 538 | 500 | 15 | 80 | 89.5 | 200 | 23.6 |
433K100AB2A3 | 100 | 110 | 90 | 550 | 510 | 15 | 100 | 108.5 | 240 | 31.1 |
