产品规范 |  |
主要零部件材料 |

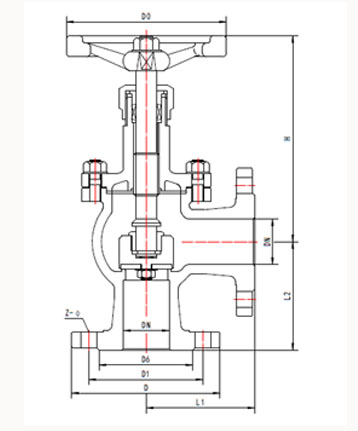

外型尺寸与连接尺寸
产品型号 | J44F-6T角式截止阀 | 重量 (kg) | |||||||||
产品代号 | 通径 DN(mm) | 尺寸(mm) | |||||||||
L1 | L2 | H1 | H2 | D | D1 | D2 | Z-Φd | D0 | |||
122K25GB2A4 | 25 | 62 | 75 | 249 | 238 | 100 | 75 | 60 | 4-11 | 160 | 7.4 |
122K40GB2A4 | 40 | 90 | 90 | 284 | 262 | 130 | 100 | 80 | 4-13 | 160 | 9.2 |
122K50GB2A4 | 50 | 100 | 100 | 292 | 263 | 140 | 110 | 90 | 4-13 | 160 | 13.3 |
122K65GB2A4 | 65 | 115 | 115 | 342 | 317 | 160 | 130 | 110 | 4-13 | 200 | 18.4 |
122K80GB2A4 | 80 | 130 | 130 | 341 | 306 | 185 | 150 | 128 | 4-17 | 240 | 20.3 |
122K100GB2A4 | 100 | 140 | 140 | 376 | 340 | 205 | 170 | 148 | 4-17 | 280 | 32.7 |
122K150GB2A4 | 150 | 165 | 165 | 475 | 420 | 260 | 225 | 202 | 8-18 | 320 | 65 |
122K200GB2A4 | 200 | 215 | 215 | 578 | 488 | 315 | 280 | 255 | 8-18 | 400 | 110 |
